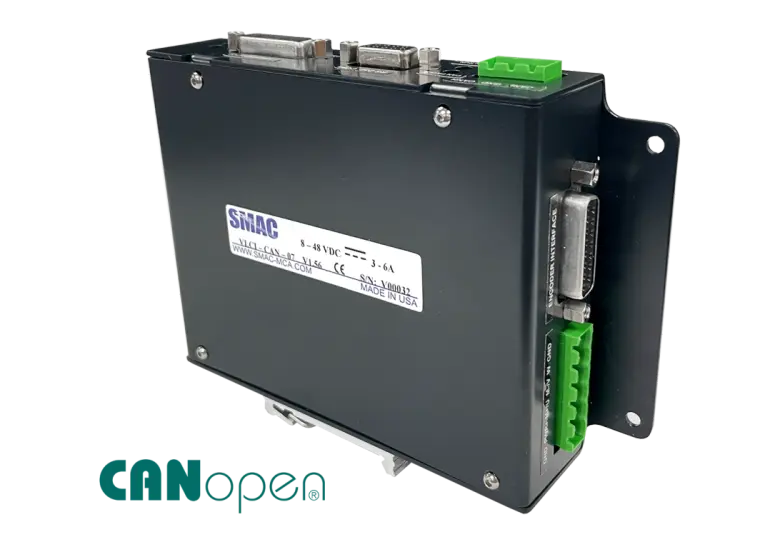

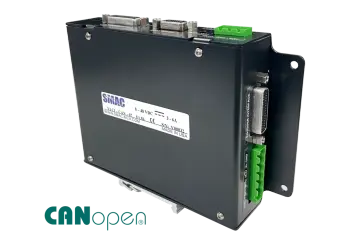

VLCI-CAN-07: Single Axis CANopen Servo Controller/Servo Drive
The VLCI-CAN-07 is a CANopen servo drive that is based on SMAC’s VLC, which is a 1-axis integrated controller/driver and an additional layer that provides the CANopen connectivity.
|
Description
|
CANopen Servo Drive/ Controller
|
|
Operating Modes
|
Position, Velocity, Torque
|
|
Filter Algorithm
|
PID
|
|
Max. Servo Loop Rate
|
100 μS
|
|
Trajectory Generator
|
Trapezoidal
|
|
Servo Position Feedback
|
Incremental Encoder with Index
|
|
Output (Standard)
|
PWM (space-vector-modulated), 3.5 Amps Cont. and 6.5 Amps Peak at 48 VDC Max.
|
|
Motor Type
|
3-Phase Brushless, DC brushed, linear actuator
|
|
PWM Frequency
|
20.0 KHz
|
|
Current resolution
|
5.66 mA
|
|
Encoder and Index Input
|
Differential
|
|
Encoder Supply Voltage
|
5 VDC
|
|
Encoder Input Voltage
|
5.5 VDC Max., -0.1 VDC Min.
|
|
Encoder Count Rate
|
40 million encoder counts per Second
|
|
Position Range
|
31 Bits
|
|
Velocity Range
|
31 Bits
|
|
Acceleration Range
|
31 Bits
|
|
Digital I/O
|
4x Opto-isolated Digital Inputs w/ common:
4x Solid-state Relay Outputs w/ common:
|
|
Analog I/O
|
Output: 1 Channel, 0-10V With 12-Bit Resolution.
|
|
STO (Safe Torque Off)
|
2x Opto-isolated STO Inputs:
1x Opto-isolated STO Feedback Output:
|
|
LEDs
|
2 x LEDs:
|
|
Communication Interface
|
RS-232 Non-Isolated, 9600 Baud Default, Selectable Between 2400 - 460800 1x CAN: 1Mbit/s Default Baudrate, CiA-301 and CiA-402 compliant |
| Supply Voltage | +8 to +48 VDC |
| Operating Temperature | 0 - 50 C |
|
Protections
|
Reversed Power Supply Polarity
|
|
Program Space
|
|
VLCI-CAN-07 Outline Drawing
VLCI-CAN-07 Outline Drawing
(Right-click and Save link as to download file.)
VLC-CAN-07 Controller User Manual Ver 1.0
VLCI-CAN-07 Outline Drawing
(Right-click and Save link as to download file.)VLC-CAN-07 Controller User Manual Ver 1.0
VLC-X Editor Setup 1.2
Use for loading system macro files.
VLC-CAN system macros - FW v1.0.0 (Right-click and Save link as to download file.)
