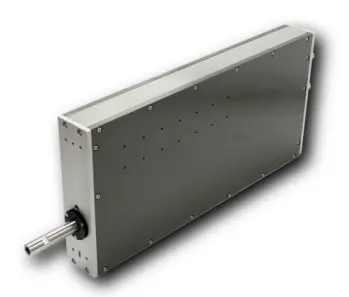

Click image to enlarge

LBR Series

The LBR is a slim, stackable linear rotary actuator with a SMAC HT direct drive brushless motor. The LBR provides a long life cycle, high linear force and rotary torque, and is specifically designed for Capping, Thread Inspection, and Smart Screw Driving applications.

Request a product demo for the linear rotary actuators, or contact us for more information.

Features
  • Z-Theta motions in one unit
  • Actuators can be stacked in multi-axis solutions.
  • Ethernet/IP communications with M12 connectors optional
  • Soft-Land function and precise force/torque control
  • IP67 Protection
  • Built-in controller optional
  • Gear options 4:1 or 16:1
  • Competitive price
Actuator Models Single Axis Controller Dual Axis Controller
Model Phase VLCI-X1 VLC-ETC VLCI-CAN-07 VLC-1-EIP VLC-1-07/13 VLC-25-07/13 VLC-25-EIP
LBR Linear: Multi
Rotary Multi
MAH-6RED26-03
(with 2 controllers)
MAH-4RED26-03
(with 2 controllers)
MAH-4RTD26-03



  • Linear encoder 5 micron standard, 1 micron optional
  • Gear: 4:1 or 16:1
  • Vacuum and spring available
  • Built-in controller
  • IP67 Protection for wash down
  • M12 connectors for Ethernet/IP communications
  • Plating: Cerakote, clear standard, consult factory for other colors
